Silver Send FUSES

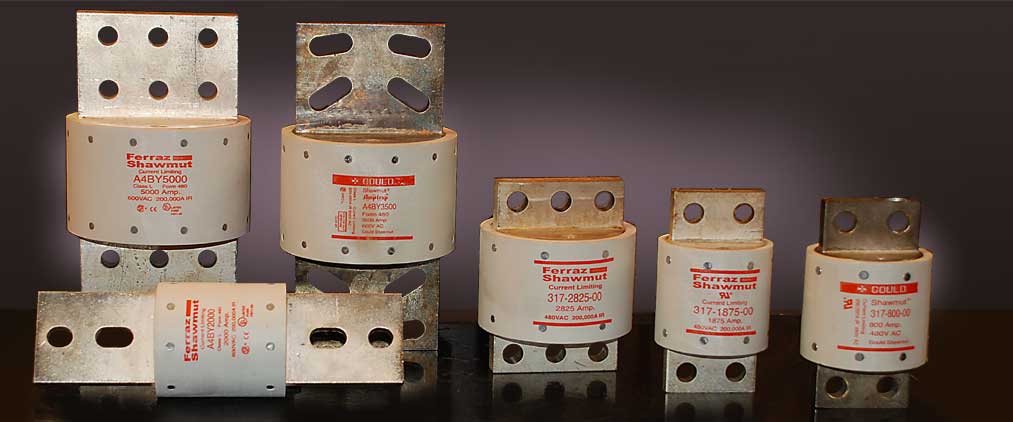

317 Series Network Protector Fuses.

Ratings

The 317 Series Fuses are special purpose fuses intended for down
stream short circuit protection of distribution networks.
The 317 Series Fuses are designed to have very low watt loss
characteristics and directly replace OEM NPL limiters.

Voltage 500 volts AC
Interrupting rating 200kA
Ampere ratings 800 through 3000

Download Fuses Brochure.

Features and Benefits

Cross Reference

Conform form to existing mounting configuration - bolt in style
Unique dimensions prevent replacement by other fuse classes
UL recognized component
Low watt loss
Designed to be used in conjunction with Network Protectors
Glass melamine body and plated terminals provide superior reliability in harsh environments

OEM	ETI
140D318G04 140D318G05 140D318G01 140D318G02 140D318G06	317-0800-00 317-1200-00 317-1875-00 317-2825-00 317-3000-00
